VMC Standard series
-
BV series
-
Overloaded
-
High-precision type

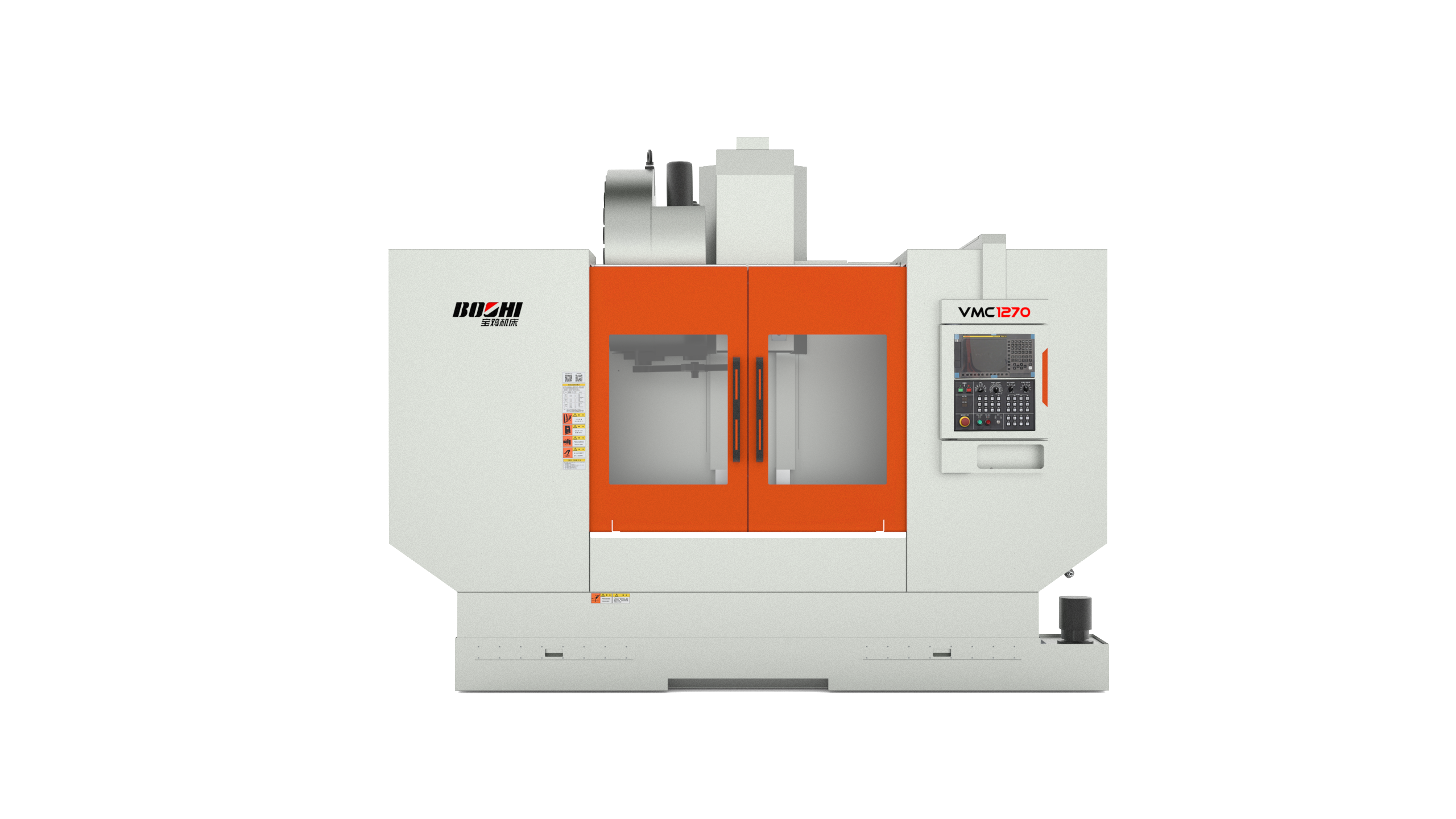

The VMC1270L vertical machining center features a two linear and one hardened guideway configuration, with X/Y axes using roller linear guides and Z-axis adopting rectangular hardened sliding guides. This design combines high rigidity, high speed, high precision, and reliability. Its modular structure ensures compactness and ease of maintenance, while the sleek aerodynamic exterior with meticulous detailing supports high-speed, high-precision machining of complex medium-to-large parts. Widely used in automotive components, valves, construction machinery, IT, optics, and medical industries, it enables multi-process machining (milling, drilling, boring, tapping, etc.) in a single workpiece clamping.
|
Item |
VMC1270L |
VMC1370L |
VMC1580L |
|
|
Worktable |
Dimensions（W×L）（mm×mm） |
700×1360 |
710×1400 |
800×1700 |
|
T-slots |
5-18（H8） |
5-18（H8） |
5-22（H8） |
|
|
T-slot Spacing (mm) |
152.5 |
122 |
135 |
|
|
Max Load Capacity (kg) |
1000 |
1000 |
1500 |
|
|
Spindle |
Taper |
BT50 |
BT50 |
BT50 |
|
Power (kW) |
15/18.5（FANUC）or 15（Siemens） |
15/18.5（FANUC）or 15（Siemens）） |
15/18.5（FANUC）or 15（Siemens） |
|
|
Speed (rpm) |
7000 |
7000 |
7000 |
|
|
Drawbar Type |
MAS 403 P50T-Ⅰ |
MAS 403 P50T-Ⅰ |
MAS 403 P50T-Ⅰ |
|
|
Travel |
X-axis (mm) |
1200 |
1300 |
1500 |
|
Y-axis (mm) |
700 |
700 |
800 |
|
|
Z-axis (mm) |
600 |
700 |
700 |
|
|
Capacity |
Spindle to Column (mm)  |
785 |
785 |
810 |
|
Spindle to Table (mm) |
150-750 |
90-790 |
130-830 |
|
|
Feed |
Max Feed (mm/min) |
10000 |
10000 |
10000 |
|
Rapid Traverse (m/min) |
20/20/20 |
24/24/20 |
24/24/20 |
|
|
X、Y、Z Motor Power (kW) |
≥2.5 |
≥2.5 |
≥4 |
|
|
Tool Magazine |
Capacity |
24（Tool Magazine） |
24（Tool Magazine） |
24（Tool Magazine） |
|
Max Tool Weight (kg) |
15 |
15 |
15 |
|
|
Max Tool Size (mm) |
Φ110×350 |
Φ110×350 |
Φ110×350 |
|
|
Other |
Power Supply (kVA) |
35 |
35 |
35 |
|
Gross Weight (kg) |
9500 |
11000 |
13000 |
|
|
Net Weight (kg) |
9000 |
10500 |
12500 |
|
|
Air Consumption (L/min) |
350 |
350 |
350 |
|
|
Air Pressure (MPa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
|
Dimensions (mm) |
3600× 3200×3100 |
3600× 3200×3100 |
4300× 3750×3100 |
|
